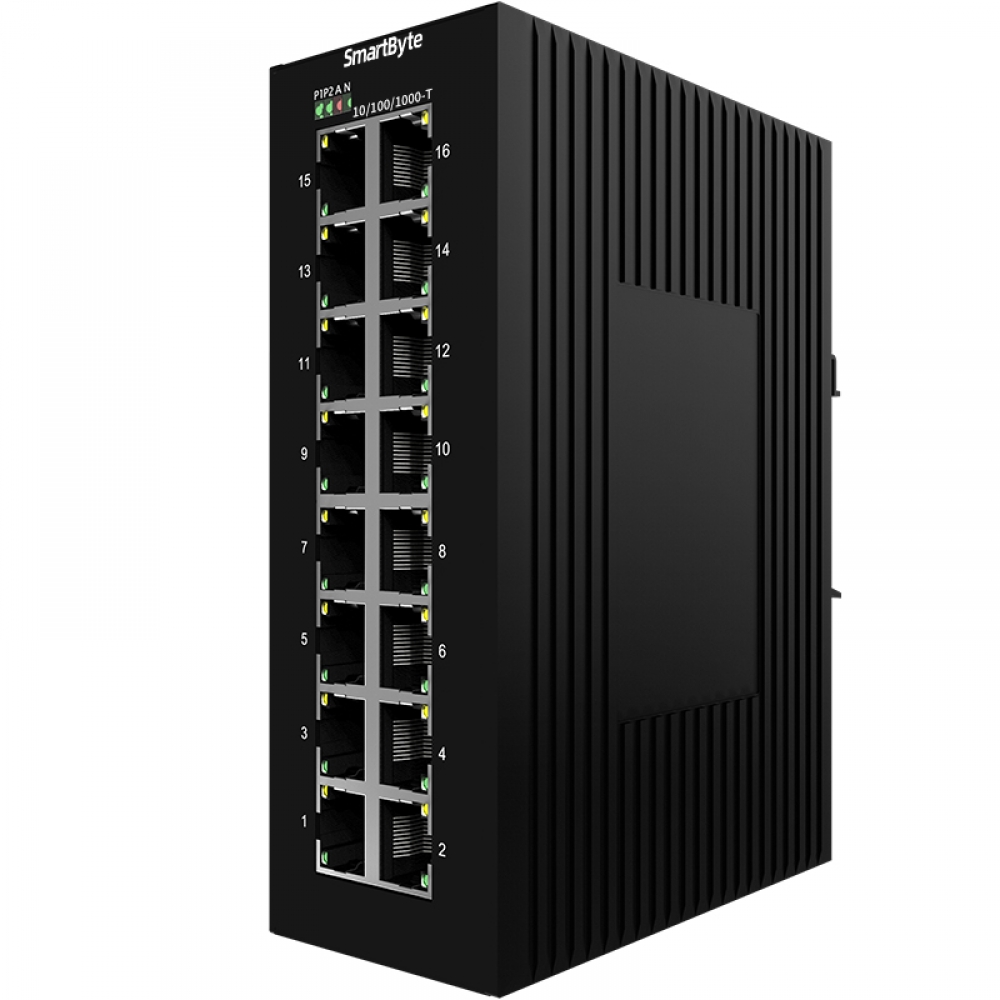

SmartByte 16 ports full gigabit unmanaged Ethernet switch

Overview:

The LT-IS6016G-16GT, featuring with 16*10/100/1000M RJ45 ports, is the 16 Ports full gigabit unmanaged industrial grade switches that it provides stable and reliable Ethernet transmission. Housed in rack-mount enclosures, wide operating temperature -40 to 75°C , it is designed for harsh environments, such as industrial networking, security automation applications, IP Surveillance, intelligent transportation systems (ITS) and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

Features:

● 16*10/100/1000Base-T RJ45 ports
● IP40 industrial case protection level and fan-less design
● Industrial Marvell chipset to make sure the high performance and quality
● DC12-58V wide range input, redundant power supply with polarity reverse protection function
● Support voltage alarm function when under-voltage or over-voltage
● Support watchdog function, which can make the equipment work again if it is frozen
● Support storm control and port isolation
● Support star, bus, tree and hybrid network topology
● Support 6KV surge protection and ESD: Air-15kV, Contact-8kV protection
● Support Din-rail installation
● Operation temperature: -40℃~+75℃
● 5 years warranty

Ports Interface

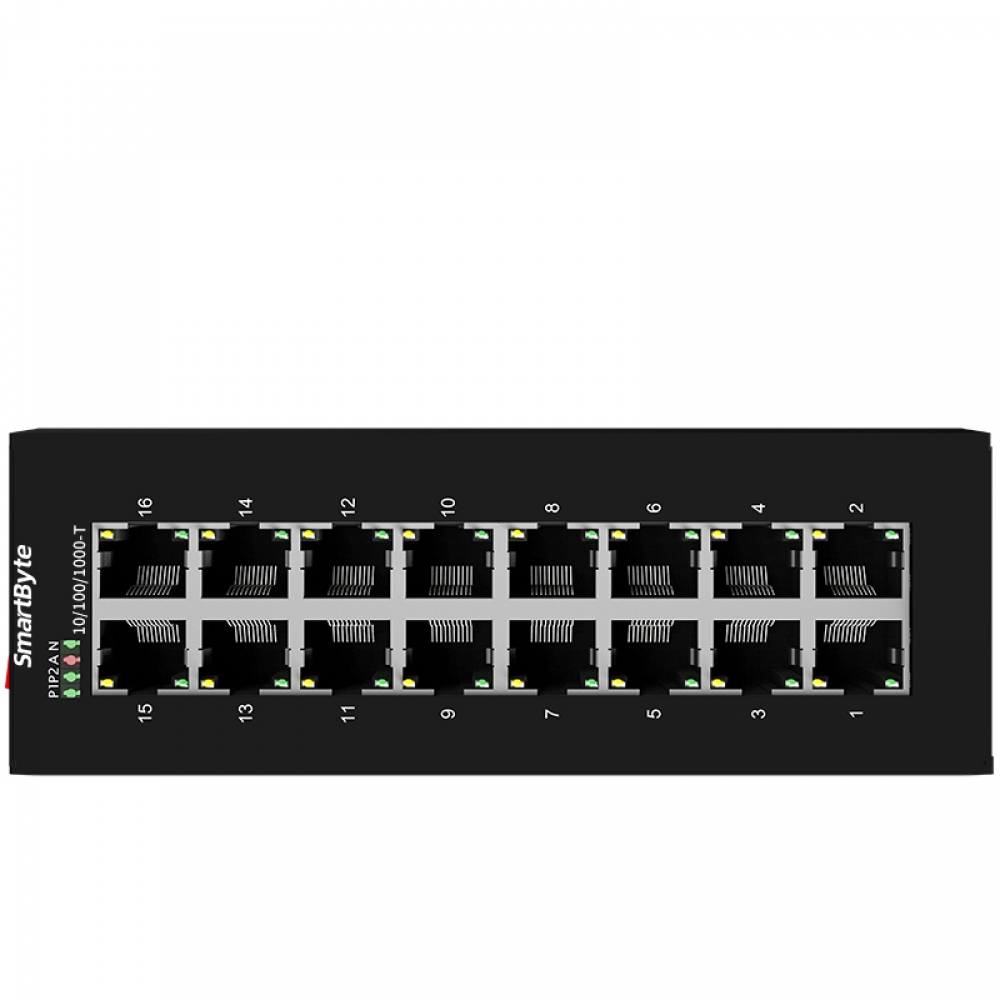

Fixed port	16*10/100/1000Base-T

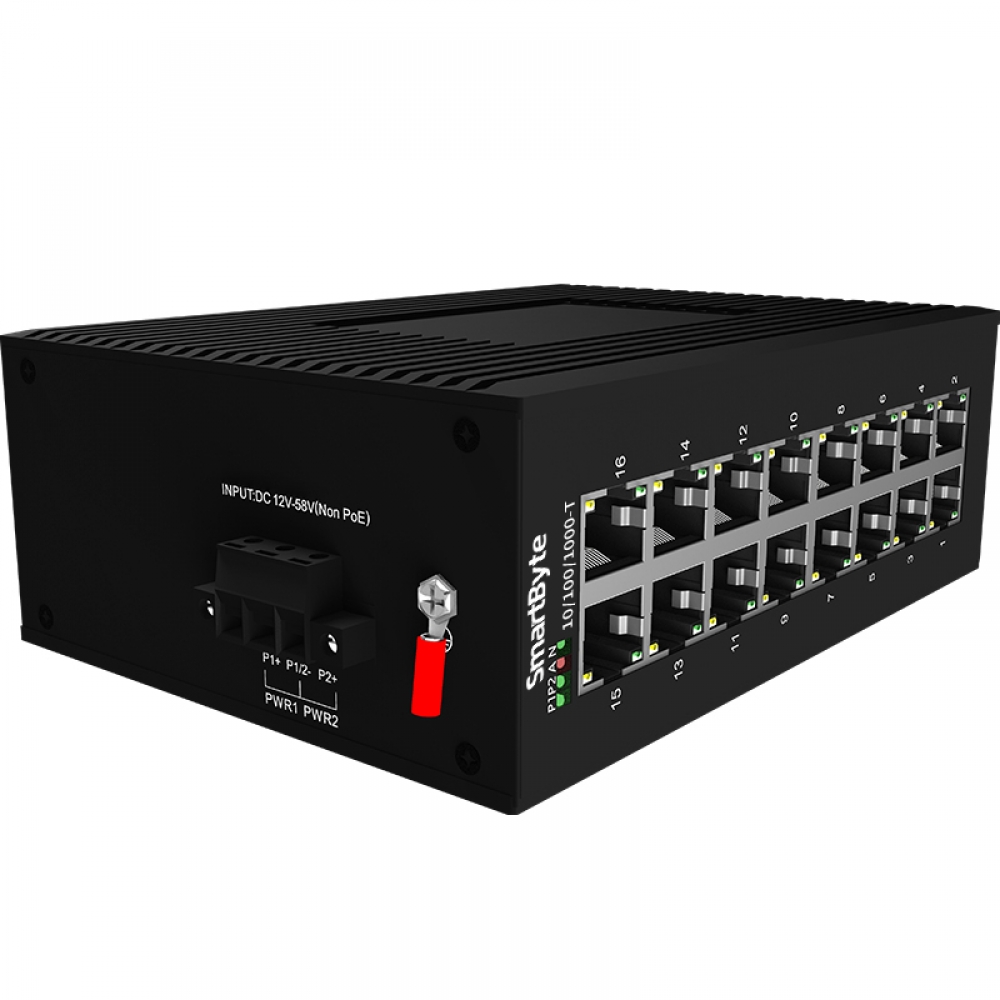

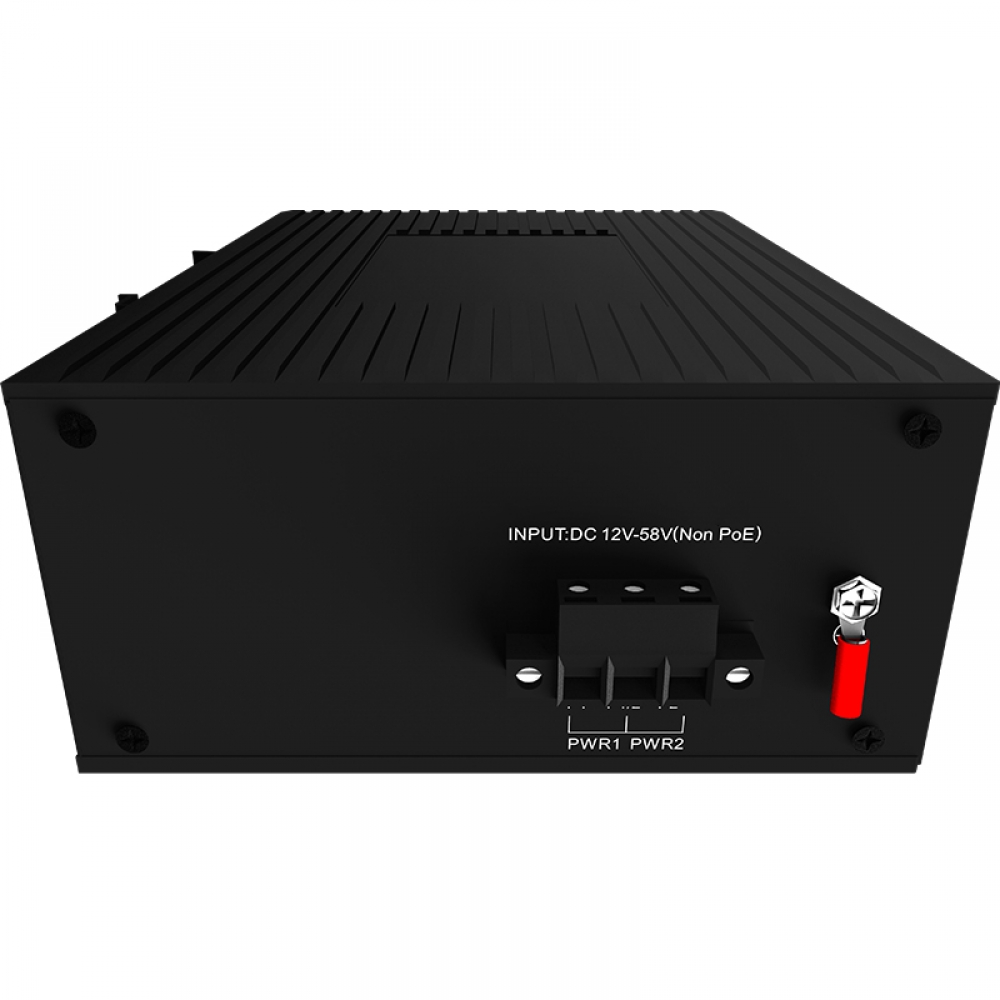

Power interface	Phoenix terminal, redundant dual power supply
LED Indicators	PWR，Link/ACT LED

Cable type &Transmission distance
Twisted-pair	0-100m（CAT5e,CAT6）

Network Topology
Star topology	Support
Bus topology	Support
Tree Topology	Support
Hybrid topology	Support

Electrical Specifications
Input voltage	DC12-58V
Total Power consumption	<10W

Layer 2 Switching
Switching capacity	32G
Packet forwarding rate	23.8Mpps
MAC address table	8K
Buffer	2M
Forwarding delay	<10us
MDX/MIDX	Support
Jumbo Frame	Support 3.3Kbytes

Environment
Operating temperature	-40℃~+75℃
Storage temperature	-40℃~+85℃
Relative humidity	5%~95% non-condensing
Thermal methods	Fan-less, natural cooling
MTBF	100,000 hours

Mechanical Dimensions
Product size	143X104X48mm

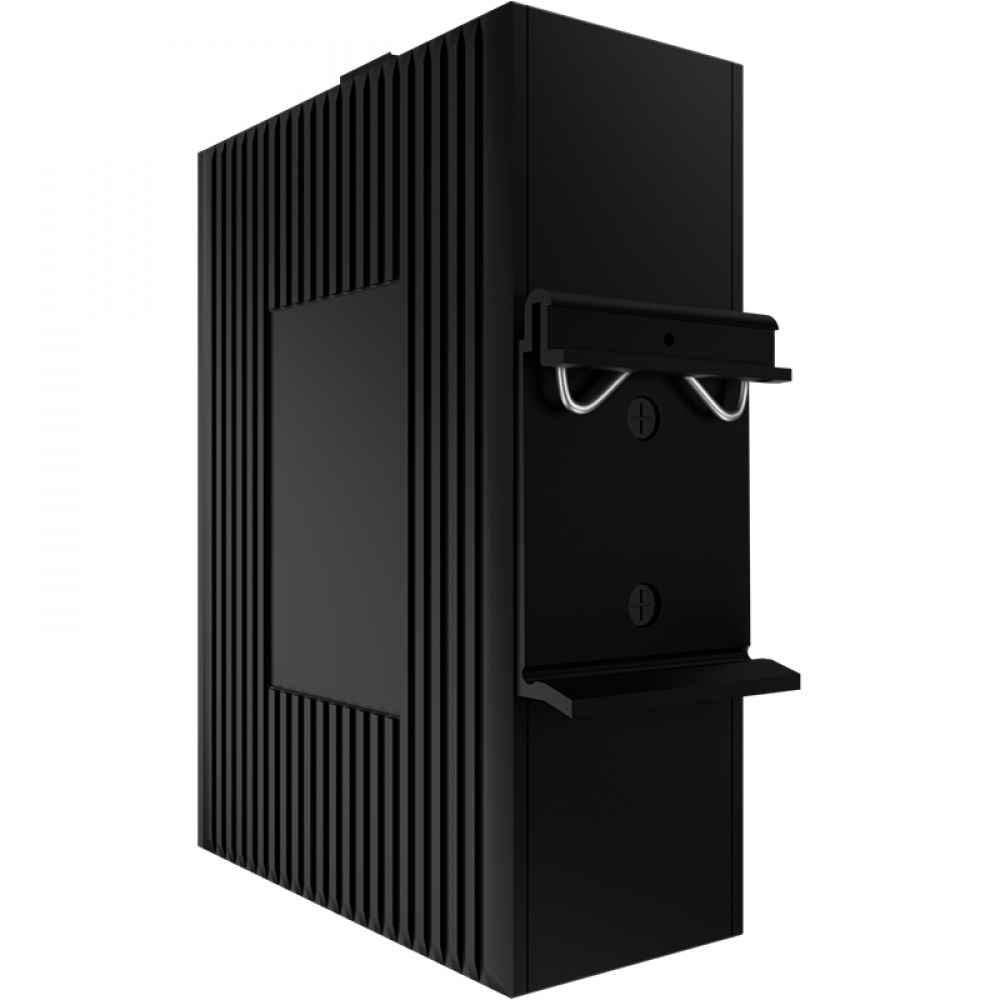

Installation Method	DIN rail
Weight	0.8KG around

Protection & Certification
IP Level	IP40
Surge protection of Power	IEC 61000-4-5 Level 3（4KV/2KV）（8/20us）
Surge protection of Ethernet port	IEC 61000-4-5 Level 3（4KV/2KV）（10/700us）
RS	IEC 61000-4-3Level 3（10V/m）
EFI	IEC 61000-4-4 Level 3（1V/2V）
CS	IEC 61000-4-6 Level 3（10V/m）
PFMF	IEC 61000-4-8 Level 4（30A/m）
DIP	IEC 61000-4-11 Level 3（10V）
ESD	IEC 61000-4-2 Level 4（8K/15K）
Free fall	0.5m
Certification	CE/FCC/RoHS/CCC

Warranty	5 years

LT-IS6016G-16GT datasheet

Unmanaged Industrial Ethernet Switches

16*10/100/1000Base-T Unmanaged Industrial Ethernet Switch
