Overview:

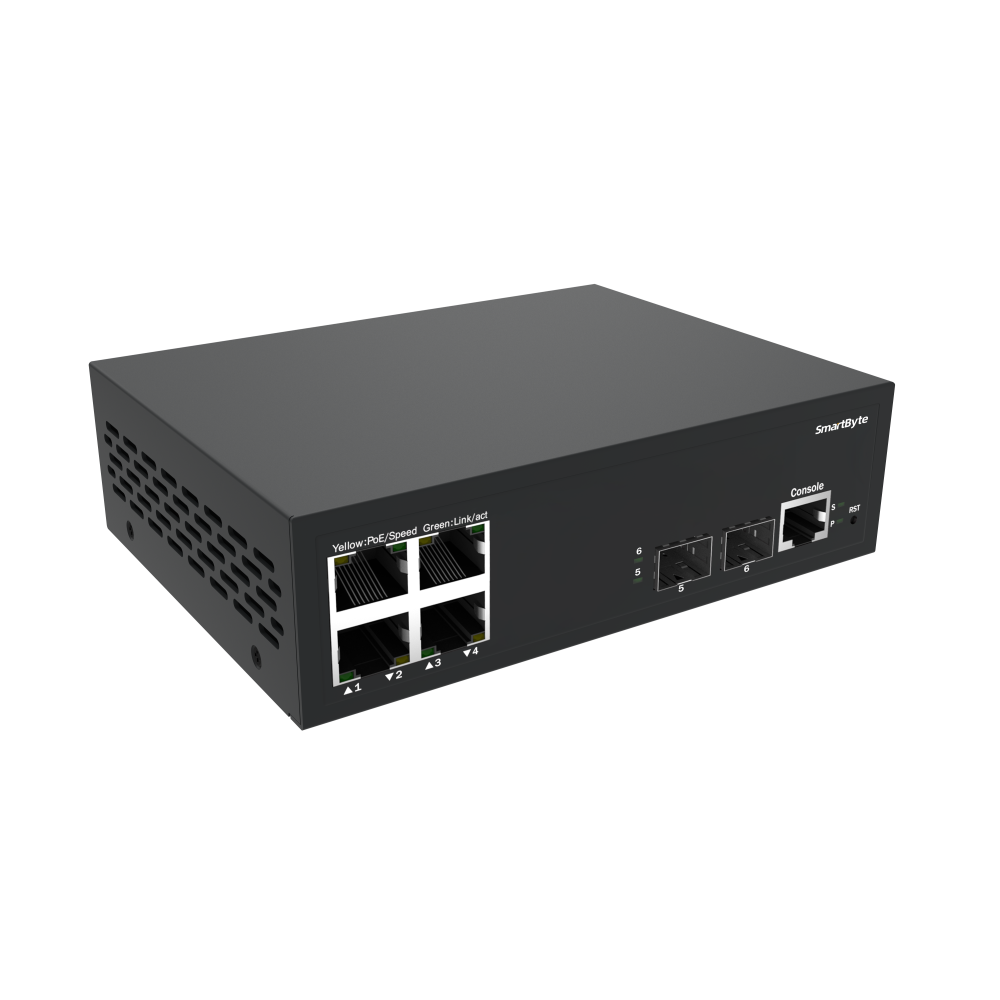

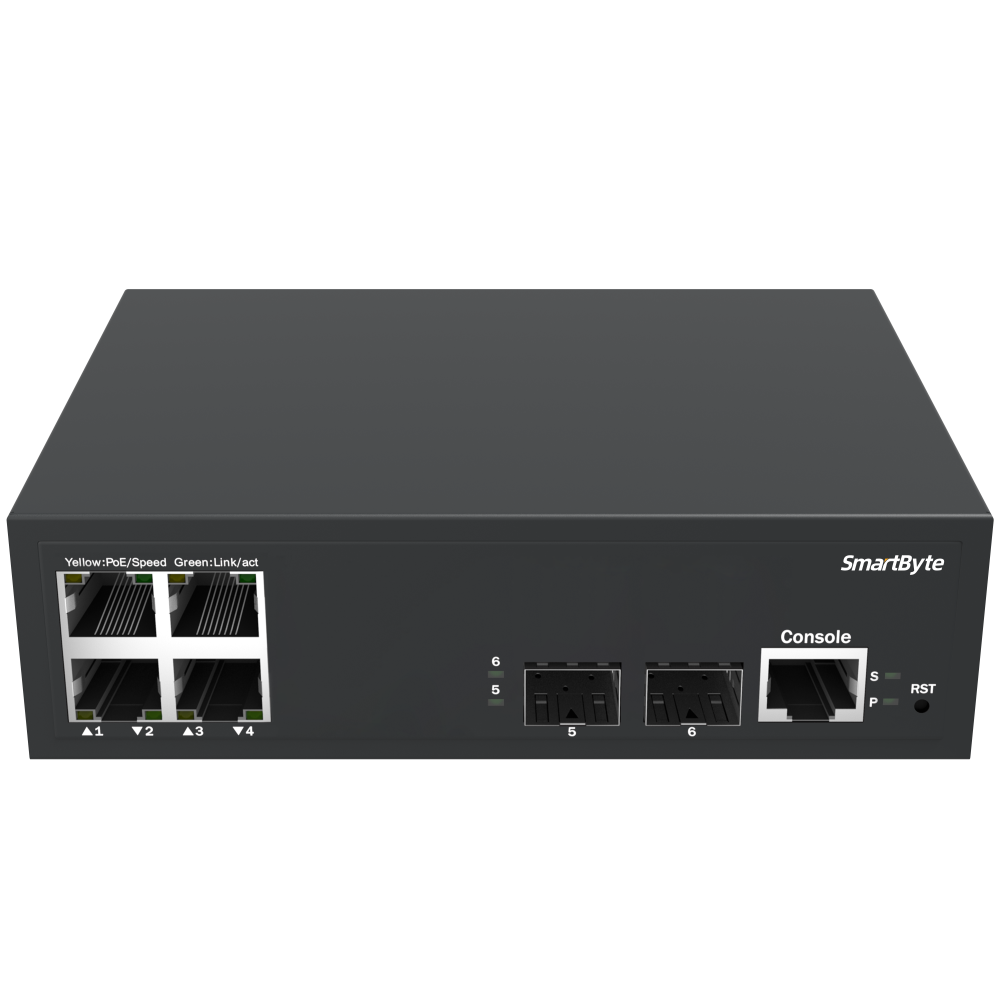

SmartByte LT-S8206G-2GX4GT is a Layer 2 full gigabit managed switch, which features 4-port 10/100/1000Base-T RJ45 and 2*1G/2.5G SFP ports. It supports powerful Layer 2 management with a high-performance switching architecture and offers wire-speed transportation capability for delivering a cost effective Gigabit Ethernet solution to meet the converged applications for enterprise customer's networks. More and more corporations are adapting new IT technologies over the network such as voice over IP, video conference to improve productivity and save operation expenditure. The LT-S8206G-2GX4GT series provide comprehensive end to end QoS as well as flexible and rich management , security settings, which can meet the high speed, secure and smart requirement for small and medium-size enterprise networks based on cost effective price.
Features:
• 2*1G/2.5G SFP slots, 4 *10/100/1000BASE-T ports, 1*RJ45 console interface for switch basic management and setup
• Port aggregation: Supports GE ports, 2.5GE port aggregation, static and dynamic aggregation
• VLAN : Supports access, truck , hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN
• QinQ: Supports port-based, VLAN-based and flow-based QinQ
• Port Mirroring: Many to one port mirroring
• Layer 2 ring network protocol: Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
• Multicast: Supports IGMP snooping
• QoS: QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS
• Security: Support Dot1x，port authentication，mac authentication，RADIUS service; Support port-security, ip source guard，IP/Port/MAC binding,
arp-check and ARP packet filtering for illegal users and port isolation
• Management : Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web management，HTTP1.1，HTTPS; Syslog and alarm
grading ; RMON （Remote Monitoring）alarm, event and history record; NTP, temperature monitoring; Ping、Tracert and optical transceiver DDM function;
Supports TFTP Client, Telnet Server, SSH Server and IPv6 Management
• Firmware update, configure backup/restore through Web GUI, FTP and TFTP
